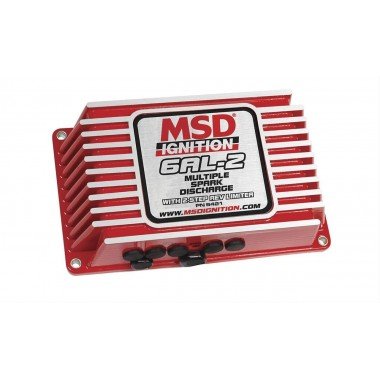

MSD 6AL-2 Ignition Boxes 6421

New

Features:	The all new ignition control combines a new housing, new digital controls and more power in a sleek package. You still receive the 20° duration of multiple sparks, combined with higher output to ensure complete combustion. There is a 2-Step rev control built into the housing but there are no rpm modules! Adjustments are made via four rotary dials for 100 rpm increment control! The all new capacitive discharge ignition will easily connect to nearly any 12-volt negative ground distributor system, even Hall-effect pickups- All new housing, digital circuits and performance - Built-in 2-Step rev control – with rotary dials - Higher output with up to 135mJ and 535 volts - Accepts Hall-effect, points and mag pickup triggers - Managed by an efficient digital controller



Characteristics:	Part Type: Ignition Boxes Part Number: MSD6421 Ignition Box Output: Capacitive discharge Circuitry: Digital Rev Limiter: Yes Timing Retard: None Data Acquisition: No CD Voltage Output to Coil: 535 V Spark Output (millijoules): 135 Millijoules Minimum Operating Voltage: 10 V Maximum Operating Voltage: 18 V Ignition Box Color: Red
