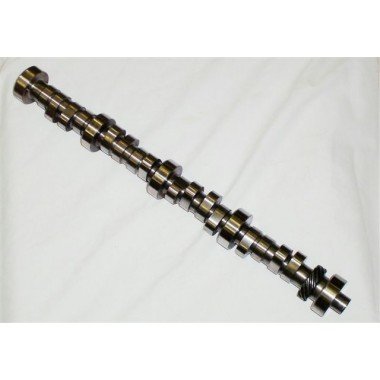

N-51HR Camshaft 2600-6200 Range
N-51HR Camshaft works with stock OEM pistons with 1.6 roller rockers. Piston-to-valve clearance must be checked. RPM range 2600-6500.
Wildest and Best performer for 302 cu.in. 1.6 R.R. & 6500 rpm and 9:7 comp. Great with TFS Twisted Wedge, Edelbrock w/1.9 intake valve and AFR 165 heads. Must use Anderson Hi-Rev valve springs. Minimum 30lb injectors and 80mm mass air. Recommend 4:30 gears. Poor drivability under 2300 rpm, lumpy idle, rpm range 2600-6500, needs 2800-3400 converter. Must check piston to valve clearance.
Read Tech Article

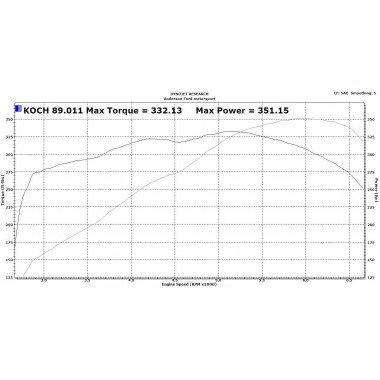

Example of using N-51HR camshaft
Stock piston short block with the N-51hr camshaft, stg III Twisted Wedge heads w/ AFM HiRev springs, Holley Systemmax II intake, 70mm t.b.Velocity mass air &Power Pipe, PMS and Bassani 1 5/8-1 7/8 headers.
EXAMPLE of using N-51HR
Stock short block, Anderson N-51HR, PRW 1.6 R.R .PMS, TFS heads, TFS push rods, BX headers. X-pipe and muffler turn downs, 75mm Throttle body & EGR, FRPP pulley, Anderson Power Pipe, Mass air, Typhoone intake
N-51HR Camshaft works with stock OEM pistons with 1.6 roller rockers. Piston-to-valve clearance must be checked. RPM range 2600-6500.
Wildest and Best performer for 302 cu.in. 1.6 R.R. & 6500 rpm and 9:7 comp. Great with TFS Twisted Wedge, Edelbrock w/1.9 intake valve and AFR 165 heads. Must use Anderson Hi-Rev valve springs. Minimum 30lb injectors and 80mm mass air. Recommend 4:30 gears. Poor drivability under 2300 rpm, lumpy idle, rpm range 2600-6500, needs 2800-3400 converter. Must check piston to valve clearance.
Read Tech Article
Example of using N-51HR camshaft
Stock piston short block with the N-51hr camshaft, stg III Twisted Wedge heads w/ AFM HiRev springs, Holley Systemmax II intake, 70mm t.b.Velocity mass air &Power Pipe, PMS and Bassani 1 5/8-1 7/8 headers.
EXAMPLE of using N-51HR
Stock short block, Anderson N-51HR, PRW 1.6 R.R .PMS, TFS heads, TFS push rods, BX headers. X-pipe and muffler turn downs, 75mm Throttle body & EGR, FRPP pulley, Anderson Power Pipe, Mass air, Typhoone intake
