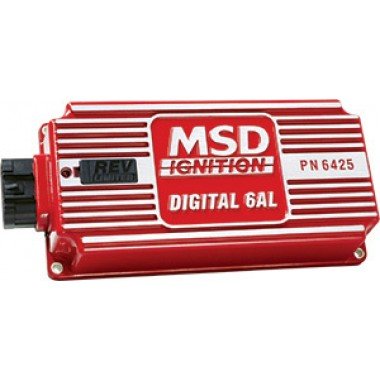

MSD Digital 6AL Ignition Controllers 6425

New


Features:	OPERATING SPECIFICATIONS Spark Energy: 135-145 mJ per spark Primary Voltage: 520-540 Volts Secondary Voltage: 45,000 Volts Spark Series Duration: 20 degree Crankshaft Rotation RPM Range: 15,000 RPM with 14.4 Volts Voltage Required: 12-15 Volts, 7 Volt Start Current Draw: .7 Amp per 1,000 RPM Weight and Size: 1.7 lbs., 8"L x 4"W x 1.825"H

Other:	With Soft Touch Rev Control Higher output with 530 primary volts and 135mJ of spark energy Efficient components use less current to produce more power Set an rpm limit on the 6AL with two rotary dials Same bolt pattern as the original 6AL with a lower profile housing Built-in LED for system checks All wires exit the same side through a locked, sealed connector Compatible for 4, 6 or 8-cylinder engines
