Edelbrock E-Force Supercharger System for the 2005-09 Ford Mustang 4.6L 3V
(  05-06 GT Needs  Cooling System Upgrade Kit Part #ED-15804 )
Will allow you to boost your Pony to a very impressive 466 HP and 439 TQ. This system was exclusively designed by Edelbrock to provide instant, reliable and safe horsepower for a stock Mustang 4.6L with low boost for minimum stress on the engine.
The core of the system is the all new Eaton Gen VI TVS® Supercharger rotating assembly. Eaton's assembly features a four lobe design with 160° of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. The supercharger assembly has been integrated into the intake manifold for a seamless design with minimal components, eliminating the possibility of vacuum leaks between a gasket surface. Edelbrock's unique inverted supercharger assembly is placed low in the valley, allowing for an incredible industry leading 15" of intake runner length for maximizing low end torque. An integrated bypass valve helps eliminate parasitic loss under light throttle for improved mileage potential.

The system breathes through a specially engineered 85mm electronic throttle body matched with the most unique and efficient inlet configuration on the market. This combination results in a shorter less restrictive intake path for improved air flow, eliminating the need for a jack-shaft. Keeping the air cool is a 110 square inch high capacity air to water intercooler and dual core low temp heat exchanger. This intercooler is the largest available on the market today.

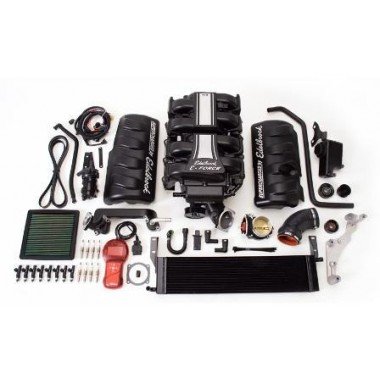

Finally... the Edelbrock E-Force Supercharger system is not just a performance upgrade, it also has great looks! The supercharger assembly and matching coil covers are uniquely styled to give your engine compartment a custom look. All of these components have been black powdered coated for durability with highlighted fins and Edelbrock logo for a timeless look.? Supercharger Manifold Assembly (Featuring Eaton TVS Rotors)
? 85mm Electronic Throttle Body
? Cast Aluminum Alternator/Idler Bracket
? Steel Belt Tensioner Brace
? Cast Aluminum Water Crossover
? Large 110 Sq-in Intercooler
? Dual Core Low Temp. Heat Exchanger for Intercooler System
? Serpentine Belt
? Electric Intercooler Water Pump
? Intercooler Recovery Tank
? Fuel Injectors (41lb/hr)
? Steel Idler Pulleys With Heavy Duty High Speed Bearings
? High Flow Pannel Air Filter for Stock Airbox
? Edelbrock Aluminum Engine Covers
? Diablosport Handheld Cal Mod
? Electical Harness & Installation Hardware

Features and Benefits:
Installs under the stock hood while maintaining factory accessories
2300cc (140 cubic inch) Eaton® TVS® GEN VI rotor assembly
Unique intake manifold design with 15" long runners (Increased low-end torque)
100,000 mile self-contained oiling system
Available 3 Year/36,000 mile warranty
466 HP and 439 ft./lbs of TQ with low boost!
Made in USA for absolute quality and performance
