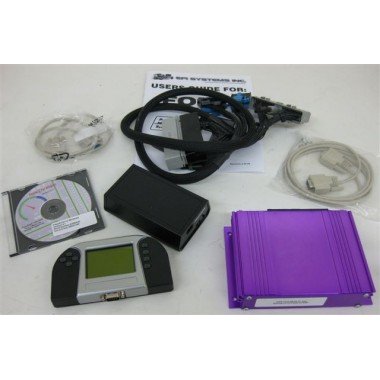

EFI-Systems 94-95 PMS with FlashACQ Kit
This Kit includes everthing in the EF-PMS (94-95 PMS programer) and the EF-FLASHACQ (data recorder for PMS with out lap top)

Part Number EF-PMS

The most Powerful and the

winningest Piggy back Computer

in NMRA History

• And Here's why.
• . Plug n play. No wiring needed
• . View screen on key pad monitoring spark timing, rpm, injector function,
• throttle position, load range, water temp, air charge temp, manifold pressure,
• mass air voltage.
• . Full tuning ability through Key pad (no lap top needed)
• . Full sequential stand alone.
• . Real time tuning. While engine is running.
• . No waiting for flashing or uploading.
• . Tuning from idle to 9900 rpm in fuel and timing in 500 rpm increments
• . Tuning by boost. Up to 30lb with 3 bar map sensor
• . Tuning for Nitrous.
• . Tuning by air charge temp or water temp for fuel and timing
• . Individual cylinder tuning for both fuel and timing
• . Start fuel setting which controls the injectors when the starter is turning the
• engine over. This gets ride of the hard starting with 42lb injectors or bigger
• . Two step rev-limiter
• . Two programmable output switches by RPM/TPS
• . Stores three separate tuning programs
• . 100% more powerful with twin processors than FORD ECC computer

Tuning Tips

Part Number EF-FLASHACQ

FlashACQ
provides a method to data log a PMS without the need of having a laptop in the car. It's almost a totally hands off system. Once set up, it triggers automatically to save data runs on a Flash Disk /thumb drive (not provided). The Flash ACQ box is placed in line with the Hand Held Terminal (which continues to operate) or can be used without the terminal. Two LEDs on the front of the box provide an easy way to monitor it's operation.

Software is included, a scaled down version of InterACQ/InterLOG (does not require a unique link to the PMS). This program sets up trigger points on Flash Disk, and displays data log files once created by the Flash ACQ box.

Features of the program include:

RS232 cable includedUser Customizable Monitor Forms
Setup for Wide Band O2 sensors, or other meters
Graphs (up to 20 different inputs), with printout
File Exports (text, Excel)

Needed and not included:Desktop or laptop computer is required and user must supply their own USB Flash Disk, minimum 256K
