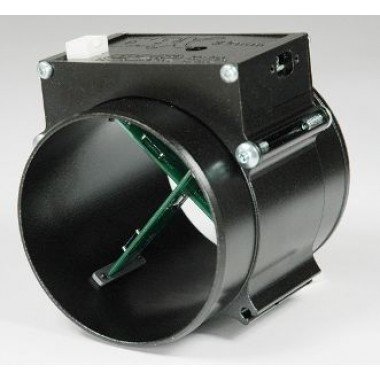

Abaco Performance 85mm Mass Air Flow Meter, flows to 3600 KGH Supports up to 1100 h.p. This Mass air flow meter can be used in a blow through or draw through application.

DBX85 mass air flow meter flows 1052 c.f.m. tested at 20.4 in.  with a 10'' air filter.
We can flash the DBX mass air flow meter for your injector size before it is shipped.

DBX85 mass air flow meter has 3.5 inch flange mount on both sides.  DBX85 mass air flow meter is designed for small cubic inch engines with 3.5 clamp on filter or blow through Turbo or Supercharger application using 3 to 3.5 tubing.
(3" tubing will need the Abaco high pressure reducer hoses).

(Will need to choose Abaco specific harness for your vehicle aplication. Not included)

The DBX™ mass air flow meter is not just another factory single or dual mass air sensor put into a larger housing and calibrated.

DBX™ mass air flow meter is a state of the art multi sensor digital mass air flow meter with multiple design & functionality patents pending. DBX™ mass air flow meter multi sensor design allows the DBX™ mass air flow meters to be installed in any configuration to the throttle body at any clock rotation with little to no signal deterioration.  This is critical for the mass air flow meter to achieve the best drive-ability.

DBX's™ mass air flow meter's proprietary Digital Response Filter (DRF) can filter electronic noise yet allows quick response to rapid air flow changes in one direction. DBX's™ mass air flow meter's DRF filters out camshaft intake reversion and/or pressure surge (from turbo's or superchargers). This feature allows the DBX™ mass air flow meters to be used in a suck-through application or a blow-through design such as a turbo or super charger application.

DBX's™ mass air flow meter's digital design allows the consumer to choose from up to 10 different mass air calibrations by the turn of a switch. In addition, these calibrations can be changed easily with Abaco's free software by plugging into the USB port. The DBX™ mass air flow meter is fully programmable so that make, year, and model applications are simply handled by wire harness plug design. This makes the DBX™ mass air flow meter's applications virtually endless as well as making the mass air flow meter and integral part of the tuning experience.

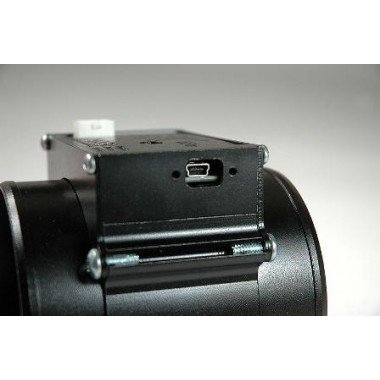

Easy plug in for USB mini cable to PC Standard USB    (cable not included)

Fits: 1988 Mustang, 1989 Mustang, 1990 Mustang, 1991 Mustang, 1992 Mustang, 1993 Mustang, 1994 Mustang, 1995 Mustang, 1996 Mustang, 1997 Mustang, 1998 Mustang, 1999 Mustang, 2000 Mustang, 2001 Mustang, 2002 Mustang, 2003 Mustang, 2004 Mustang, 2005 Mustang, 2006 Mustang, 2007 Mustang (With the proper DBX mass air flow meter plug-in adapter harness)
