Anderson / EFI Hurricane Intake Manifold Kit, up to 7000 rpm

Check out Article Manifold Muscle... Add Power to Your Engine with an Anderson Ford Motorsport EFI Hurricane Intake

The Anderson/ EFI Hurricane  is a Great looking intake manifold that lightens up the look of your engine compartment and pulls very strong on the top RPMs This intake has the capability to pull as high as 7500 rpms.
Anderson/ EFI Hurricane is Great for natural aspirated 302/347 c.i. Hi-RPM engines.  It is also a good choice for forced Induction 331/347 c.i. engines looking for that upper RPM boost of power.

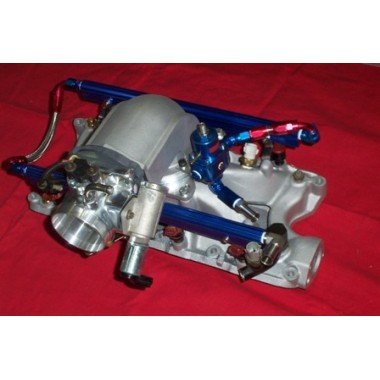

(shown in picture but not included in PKAF-70213A are throttle body,IAC motor, fuel injectors, ACT sensor, water outlet and w/ECT sensor)

KITAF-70213A  includes:
PP-70213 The EFI-Hurricane manifold is designed for racing or serious street applications using aftermarket cylinder heads. Includes bosses that can be drilled and tapped for nitrous.
It features a rear water crossover passage along with four corner tapped water ports. Ports are 1.90€? x 1.08€? at the gasket flange and the manifold contains enough material to open ports to 2.10€? x 1.25€?. Use Professional Products intake gasket #54600 or Fel-Pro intake gasket #1250 or #1262. This manifold includes a 1/8-NPT vacuum port under the carb flange, a feature lacking in competitive manifolds of this type.
PP-10607 fuel rail kit includes an adjustable fuel pressure regulator, a stainless braided -6 AN fuel crossover hose, stainless steel mounting brackets and hardware,
PP-70213 EFI Snorkel Inlets,
AF -70213A Snorkel adapter for 5.0 throttle body,
AF-kit fuel hardware kit to fit up to stock 87-93 fuel rails.

The Anderson/EFI-Hurricane kit includes everything you need to fit up to 5.0 throttle body and 87-93 stock fuel lines. (not supplied but will need 35 inches of 5/8 heater hose and 29 inches of 3/4 heater hose)
Supplemental Instructions

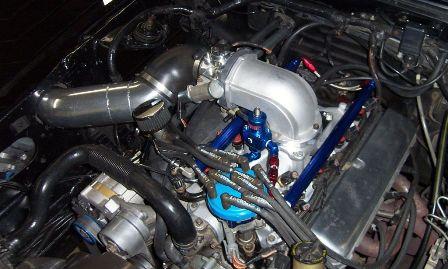

(installed on natural aspirated 5.0)

    DSS Short Block,  Twisted Wedge Heads N-71 Hi-Rev Camshaft,  Bassani 1 5/8 to 1 3/4 header

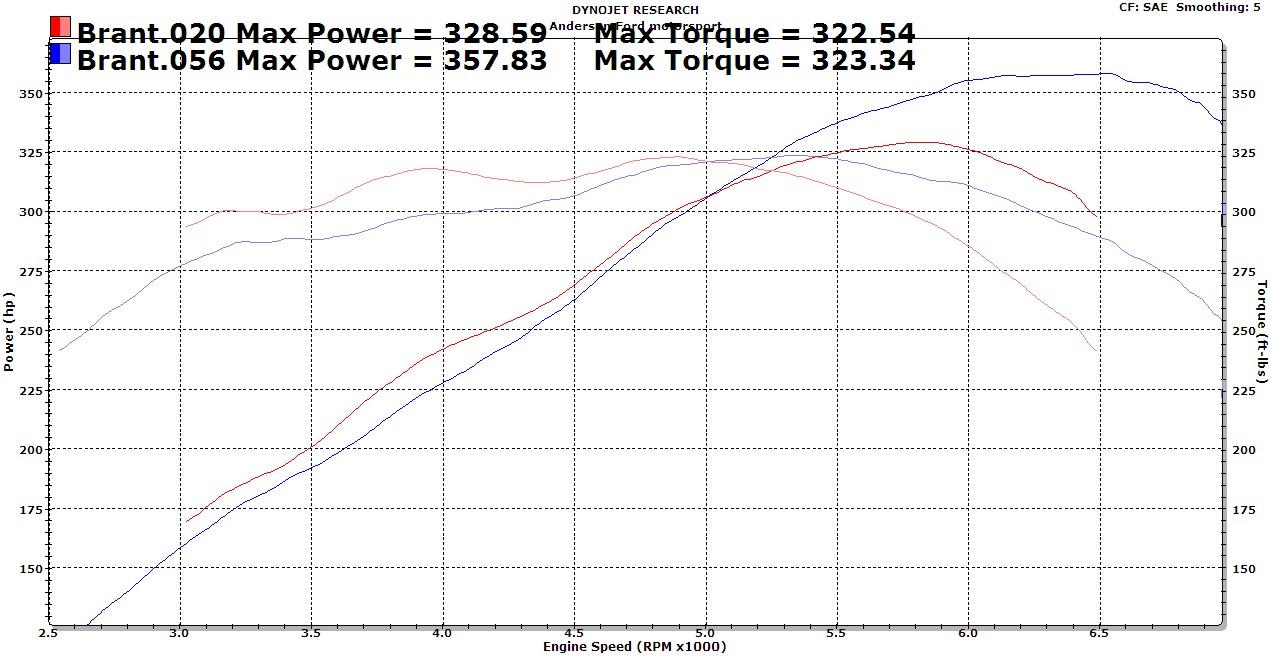

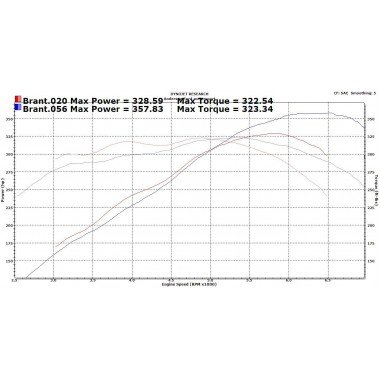

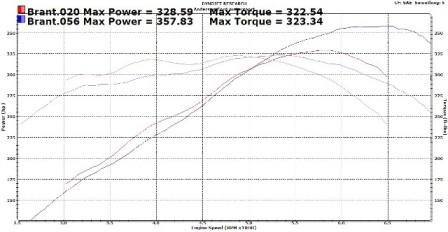

    Dyno pull .020  Professional Product Typhoon intake
    Dyno pull .056  Only change is to EFI-Hurrican intake

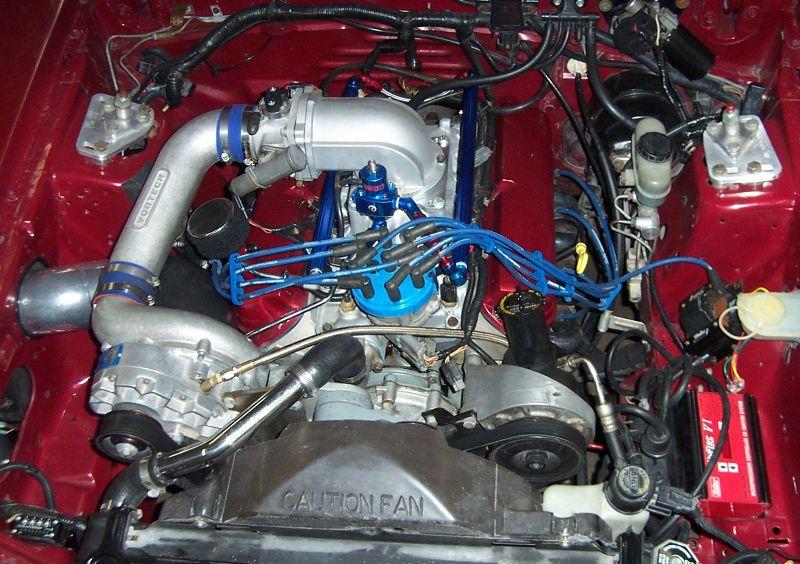

(installed on supercharger 5.0)
