Abaco Performance 97mm Mass Air Flow Meter with Bell, flows to 4800 KGH Supports up to 1550 h.p
DBX97B mass air flow meter is for use in draw through applications.

DBX97B mass air flow meter flows 1323 c.f.m. tested at 20.4 in.  with a 10'' air filter
We can flash the DBX mass air flow meter for your inector size before it is shipped.

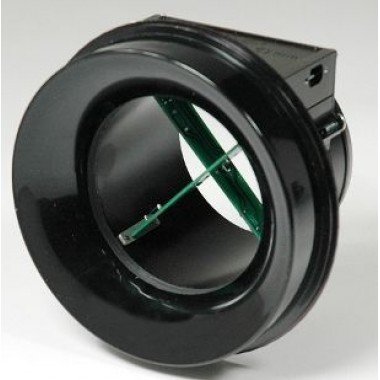

DBX97B mass air flow meter has 4.0 inch flange mount on one side and 6 inch bell design on the other; 4.25 inch total length.
DBX97B mass air flow meter is to be used with 6 inch clamp on filter. DBX97B mass air flow meter is designed for big cubic inch engines or virtually any draw through application.

(Will need to choose Abaco specific harness for your vehicle application. Not included)

The DBX™ mass air flow meter is not just another factory single or dual mass air sensor put into a larger housing and calibrated.

DBX™ mass air flow meter is a state of the art multi sensor digital mass air flow meter with multiple design & functionality patents pending. DBX™ mass air flow meters multi sensor design allows the DBX™ mass air flow meters to be installed in any configuration to the throttle body at any clock rotation with little to no signal deterioration.  This is critical for the mass air flow meter to achieve the best drive-ability.

DBX's™ mass air flow meters proprietary Digital Response Filter (DRF) can filter noise yet allows quick response to rapid air flow changes in one direction. DBX's™ mass air flow meters DRF filters out camshaft intake reversion and/or pressure surge (from turbo's or superchargers). This feature allows the DBX™ mass air flow meters to be used in a suck-through application or a blow-through design such as a turbo or super charger application with the same DBX™ mass air meters.  DBX97B mass air flow meter can only be used in a draw through application due to its high flow filter bell.

DBX™ mass air flow meters digital design allows the consumer to choose from up to 10 different mass air calibrations by the turn of a switch. In addition these calibrations can be changed easily with Abaco's free software by plugging into the USB port. The DBX™ mass air flow meter is fully programmable so that make, year, and model applications are simply handled by wire harness plug design. This makes the DBX™ mass air flow meter's applications virtually endless as well as making the mass air flow meter an integral part of the tuning experience.

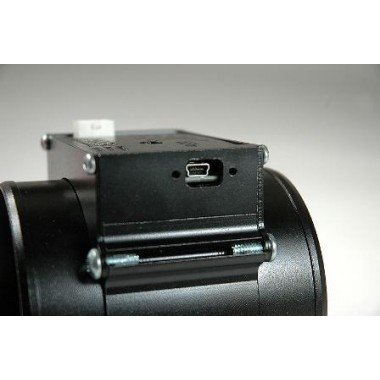

Easy plug in for USB mini cable to PC Standard USB  (cable not included)

Fits: Fits: 1988 Mustang, 1989 Mustang, 1990 Mustang, 1991 Mustang, 1992 Mustang, 1993 Mustang, 1994 Mustang, 1995 Mustang, 1996 Mustang, 1997 Mustang, 1998 Mustang, 1999 Mustang, 2000 Mustang, 2001 Mustang, 2002 Mustang, 2003 Mustang, 2004 Mustang, 2005 Mustang, 2006 Mustang, 2007 Mustang (With the proper DBX mass air flow meter plug-in adapter harness)
