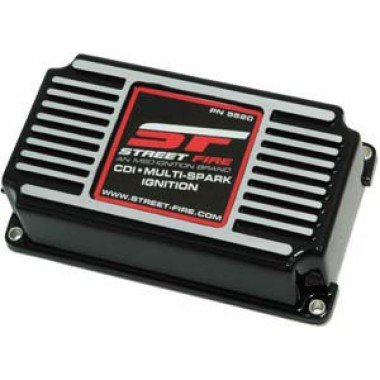

MSD Street Fire Ignition

Features
Capacitive Discharge Technology
Multiple sparks improve starting and idle
Full power output at high rpm
Easily connects to points, amplifiers and magnetic pickup distributors
Adjustable rev limiter for overrev protection

This Street Fire CDI Ignition is perfect for budget minded enthusiasts. The ignition offers capacitive discharge technology and will fire a series of multiple sparks that lasts for 20° of crankshaft rotation when the engine is running under 3,000 rpm. This ensures combustion and produces great throttle response and smooth idle. The CDI is built around a durable cast aluminum housing and easily connects to points, amplifiers and magnetic pickup distributors. There's even an adjustable rev limiter for overrev protection!

Operating Specs
Spark energy: 95 mJ Per Spark
Primary voltage: 435 Volts
Secondary voltage: 45,000 Volts
Spark series duration: 20° Crankshaft Rotation
RPM range: 15,000 RPM with 14.4 Volts
Voltage required: 10-18 Volts, Negative Ground
Current draw: .7 Amp per 1,000 RPM
Weight & size: 1.5 lbs., 6"L x 3.5"W x 1.75" H
