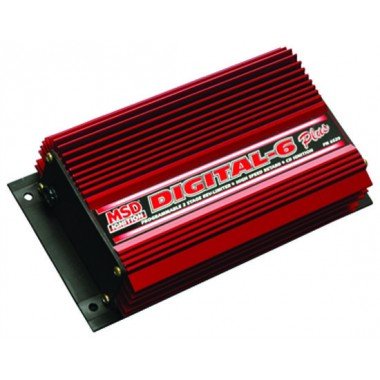

MSD Digital-6 Plus CD Ignitions 6520

New

Features:	OPERATING SPECIFICATIONS Spark Energy: 135 mJ Per Spark Primary Voltage: 535 Volts Secondary Voltage: 45,000 Volts Spark Series Duration: 20° Crankshaft Rotation RPM Range: 12,500 RPM with 14.4 Volts Voltage Required: 12-18 Volts, Negative Ground Current Draw: .7 Amp per 1,000 RPM Weight and Size: 3.7 lbs., 8.5"L x 4.5"W x 2.2"H

Other:	Switch between two rev limits that adjust with rotary switches in 100 rpm increments. Single stage retard for nitrous and top end performance. Start retard eases pressure on the starter, flywheel and engine. Adjustable magnetic pickup compensation produces accurate trigger signals. LED display warns of trigger signal problems or faulty charging system. Fully potted with polyurethane for vibration and water protection.
